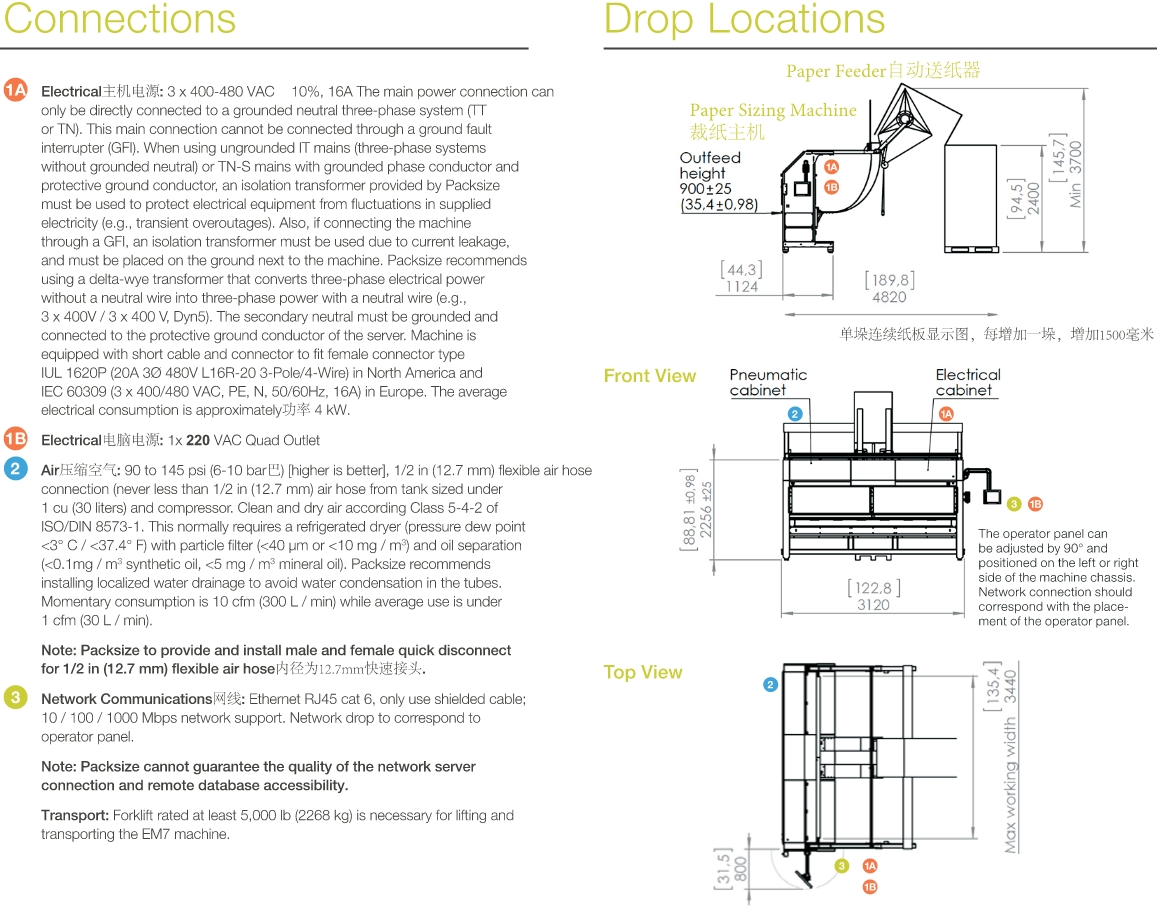

| Item | Specification |
|---|---|
| Weight | 4,400 lb (2000 kg) |
| Height | 12 ft 1 in (3700 mm) |
| Footprint | 113 ft² (10.5 m²) |
| Footprint with Bales | 15 ft 8 in × 10 ft 2 in (4820 mm × 3120 mm) [L × W] |
| Electrical | L16-20R + 3-Pole / 4-Wire, 3 × 400-480 VAC ±10%, 16A,
|
| Air | Dry air pressure at 90-145 psi (6-10 bar) and 1/2 in (12.7 mm) flexible air hose required |
| Notes | All lines must be provided with an additional 15 ft (4572 mm) of slack for proper machine placement. |
