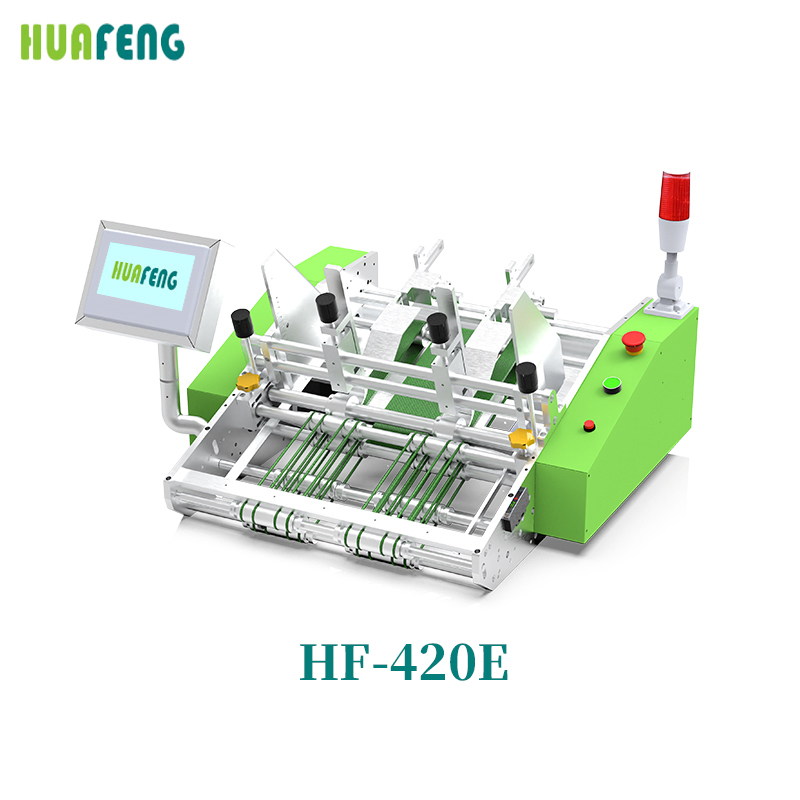

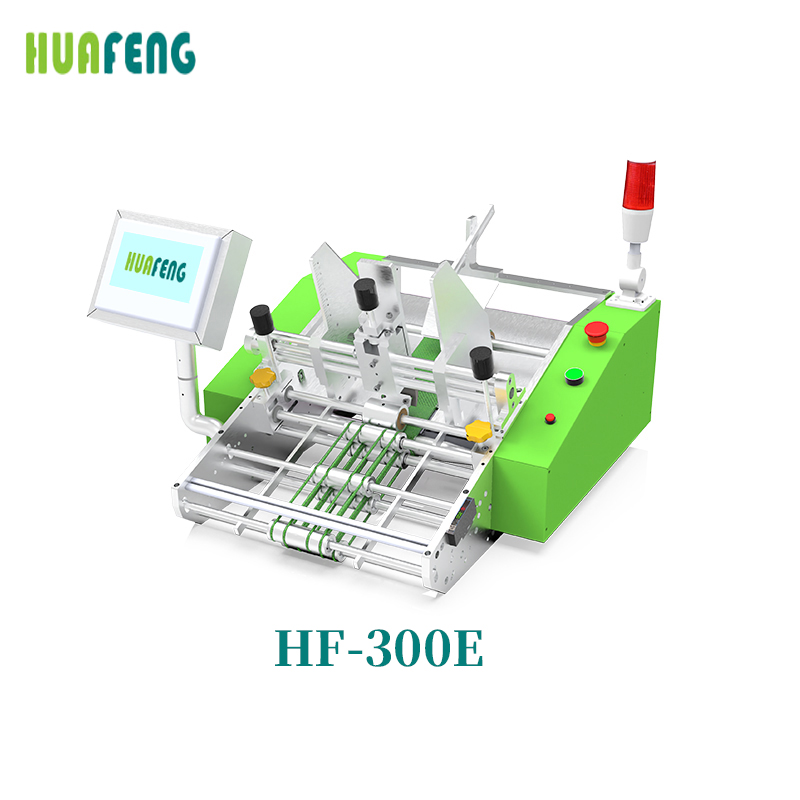

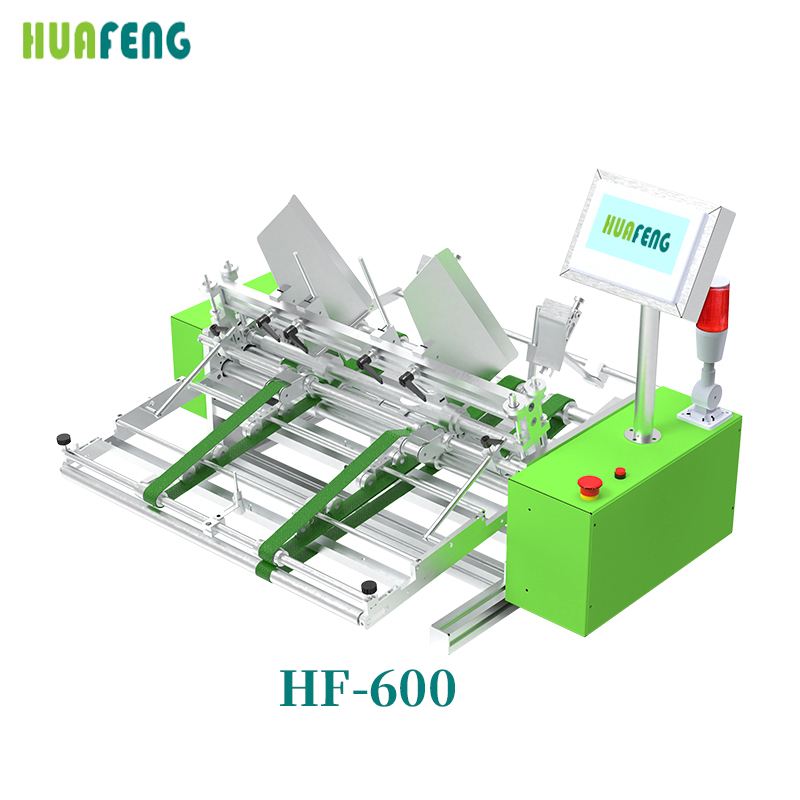

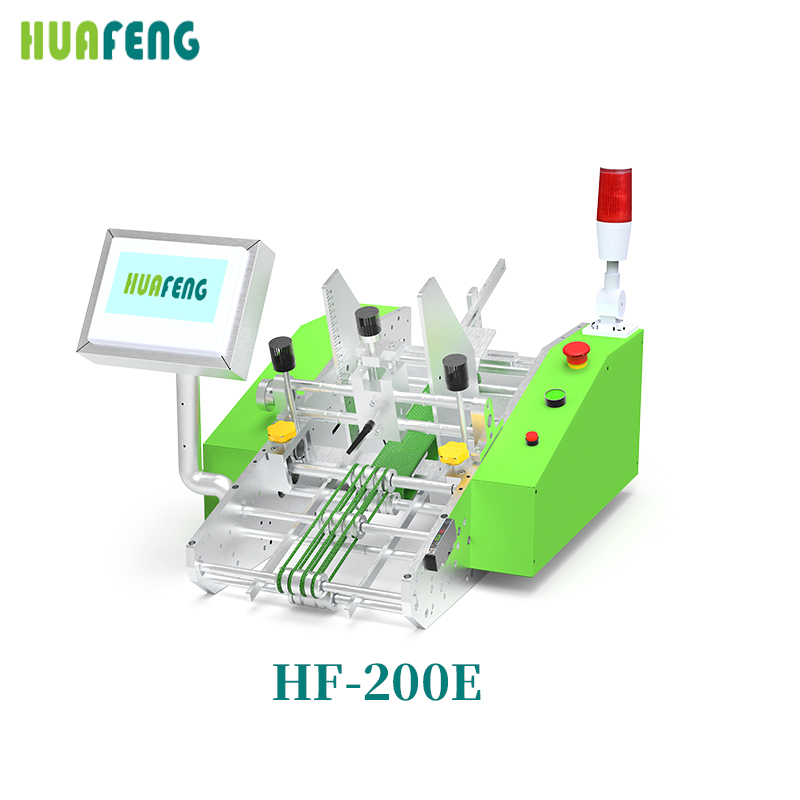

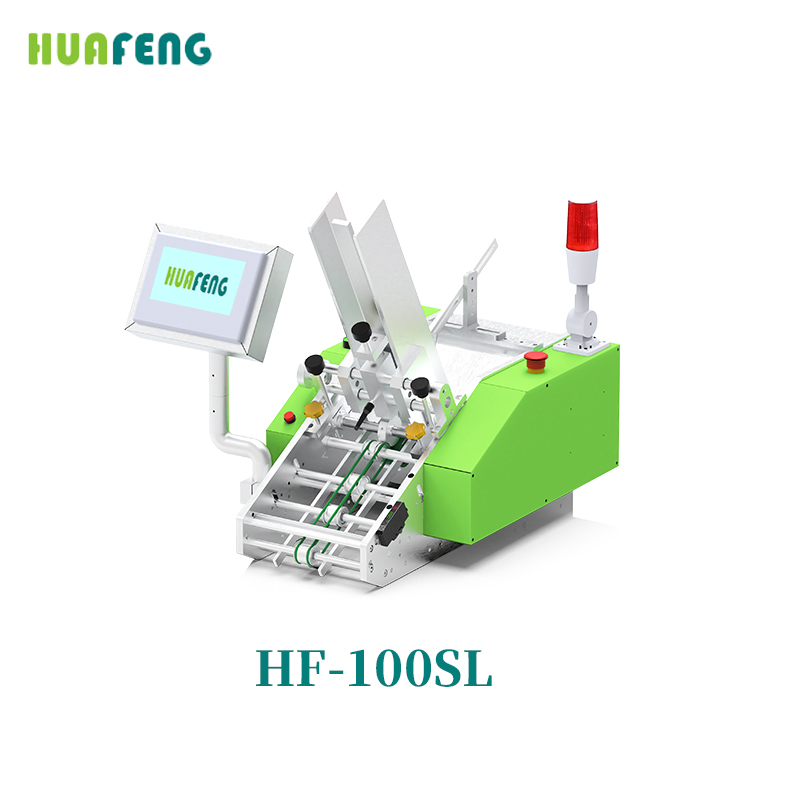

| Model | HF-100SL | HF-200E | HF-300E | HF-420E | HF-600 |
|---|---|---|---|---|---|
| Speed | 0-500pcs/min | 0-500pcs/min | 0-300pcs/min | 0-200pcs/min | 0-200pcs/min |
| Card Length | 40-180mm | 50-300mm | 60-300mm | 60-500mm | 100-500mm |
| Card Width | 30-120mm | 61-200mm | 100-300mm | 200-420mm | 200-600mm |
| Card Thickness | 0.1-3mm | 0.1-3mm | 0.1-3mm | 1-3mm | 1-3mm |
| Power | 220V/450W | 220V/500W | 220V/800W | 220V/800W | 220V/800W |
| Control system | servo motor/PLC screen | servo motor/PLC screen | servo motor/PLC screen | servo motor/PLC screen | servo motor/PLC screen |
| Size | L:611mm
|
L:711mm
|
L:711mm
|
L:711mm
|
L:888mm
|
| Weight | 25kg | 30kg | 45kg | 58kg | 65kg |
